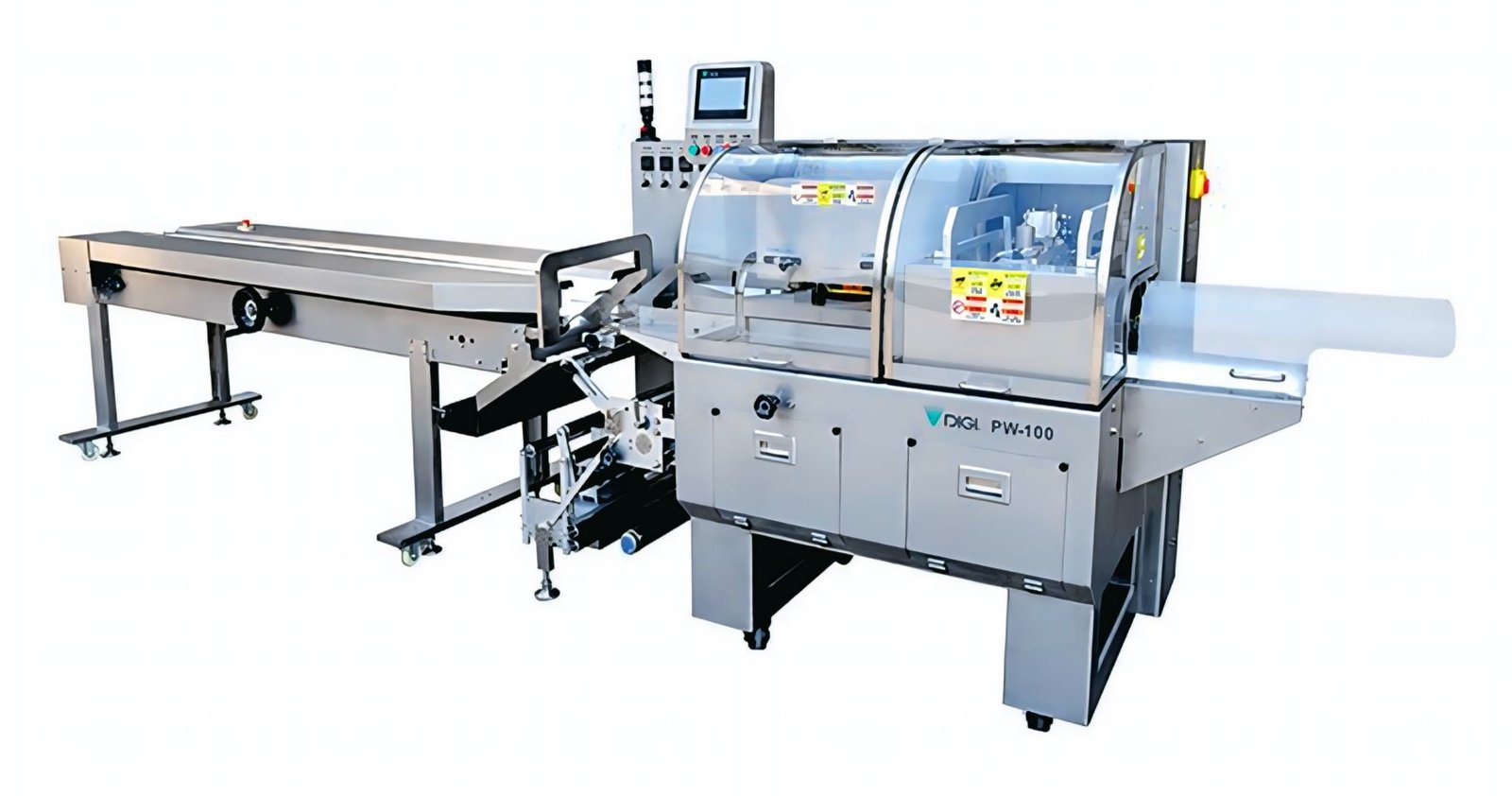

HIGH SPEED VEGETABLES FLOW WRAPPER MACHINE (PW 100)
The Horizontal Form-Fill-Seal Flow Wrapper is built upon the basic configuration with enhanced features that provide greater loading capacity and higher operating speeds. It incorporates a rotating head and comes equipped with the necessary components such as trays and tubs to facilitate the packaging of various products without in-line supports, including products like tri-color peppers and other irregularly shaped items.
Designed for continuous production environments, the machine delivers reliable performance, excellent sealing quality, and consistent packaging while minimizing product handling and downtime.
Technical Specifications
| Product Application | Irregular, Cubical, Cylindrical, Square and Rectangular Shaped Solid Products |
|---|---|
| Quantity / Pouch | One Product per Pouch (Can be customized as per requirement) |
| Feeding System | Manual or Automatic Feeder (Conveyor, Trolley, etc.) |
| Temperature Controller | PID (Programmable Integral Derivative) Based |
| Machine Control | PLC (Programmable Logic Controller) Based |
| Maximum Roll Width | 380 mm |
| Compressed Air | 6 CFM @ 6 Bar |
| Pouch / Sealing Type | Pillow Type / Center Seal |
| Pouch Dimensions | Length: 60–140 mm, Width: 35–150 mm, Height: 10–70 mm |
| Power Consumption | 3 kW |
| Speed | 30–140 Pouches/Minute (Depending on product size, shape and laminate) |
| Electric Supply | 220V AC, Single Phase, 50 Hz |
| Machine Dimensions | 3600 × 1500 × 2000 mm (L × W × H) |
| Net Weight | 650 Kg |
| Optional Attachments | Electronic Coding Device |
Applications
Our Flow Wrap Machines package a wide variety of products across multiple industries — from food and pharma to industrial and electrical.
Benefits of Our Flow Wrap Machine
Designed to improve productivity, ensure consistent packaging quality, and reduce operational costs across various industries.
High Production Speed
Capable of packaging up to 140 pouches per minute, maximizing production efficiency and reducing downtime.
Versatile Product Handling
Suitable for packaging irregular, cylindrical, square, rectangular and cubical solid products with ease.
Advanced Automation
PLC-based control and PID temperature management ensure precise sealing and consistent machine performance.
Reliable Packaging
Produces secure pillow-type center-seal pouches that protect products during storage and transportation.
Low Maintenance
Robust construction with high-quality components minimizes maintenance requirements and operating costs.
Multi-Industry Applications
Ideal for bakery, confectionery, pharmaceutical, sanitary, industrial, electrical and consumer products.
